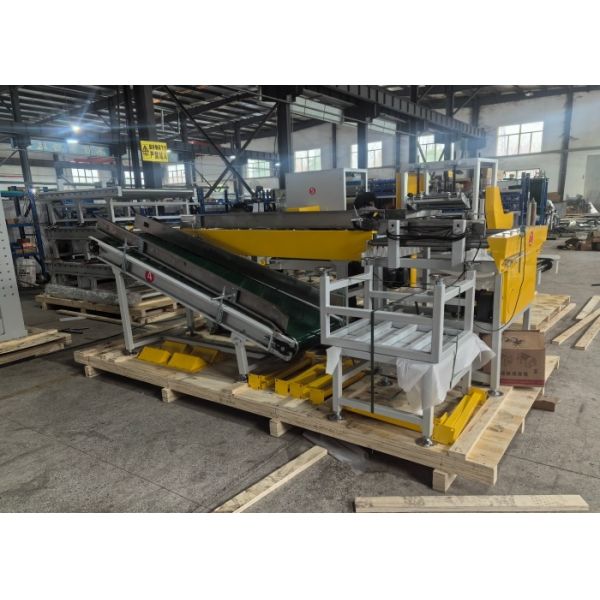

30kg Bag Wheat Packing Machine For Seeds Semi Automatic In Grain Industry
This semi-automatic wheat packing machine is specifically designed for the grain industry, offering reliable performance for packaging seeds and grains in 10-50kg bags with high precision and efficiency.
Machine Features
- High accuracy and high-speed operation
- Packaging capacity for 10-50kg bags or bottles
- Double feed system with big valve and small vibration for optimal accuracy and speed
- Multilingual touch screen interface (Chinese/English or custom language)
- Reasonable mechanical structure for easy size changes and cleaning
- Premium brand electrical components for enhanced stability
- Low noise operation
- Available in SUS 304 stainless steel construction
Main Machine Components
| No |
Name |
Model |
Manufacturer |
QTY |
| 1 |
Control system |
|
Canada Germaine |
1 |
| 2 |
Weighing controller |
|
Canada Germaine |
1 |
| 3 |
Weighing sensor |
|
Toledo |
1 |
| 4 |
Approach switch |
BN-M18 |
Omron |
1 |
| 5 |
Optoelectronic switch |
FQ31-TO8P |
Omron |
1 |
| 6 |
Contactor & breaker |
|
Zhengtai |
10 |
| 7 |
Other low-pressure component |
|
Zhengtai |
1 batch |
| 8 |
Motor |
|
Zhengjiang China |
1 batch |
| 9 |
Cylinder |
|
AIRTAC |
1 batch |
| 10 |
Magnetic valve |
|
AIRTAC |
1 batch |
| 11 |
Other pneumatic element |
|
AIRTAC |
1 batch |
Technical Parameters
Packing Machine Specifications
| Parameter |
Specification |
| Machine Model |
SXP25G |
| Weighing Model |
Net weighing / Gross weighing |
| Feeding Mode |
Valve feed, vibrate feed again |
| Package Weight |
10-50Kg |
| Package Accuracy |
±0.2% |
| Packaging Speed |
6-10 bags/min |
| Power Supply |
380 220V/50Hz |
| Atmospheric Pressure and Use Tolerance |
6-8Kg/cm² 0.2m³/min |
| Total Power |
3Kw |
| Overall Dimensions |
900mm×800mm×2500mm (For reference) |
Transport Machine Specifications
| Parameter |
Specification |
| Conveyor Length |
3000mm |
| Conveyor Speed |
5-20m/min |
| Conveyor Belt Width |
400mm |
| Maximum Conveying Capacity |
10-15 bags / min |
| Power Supply |
AC380V |
| Power |
0.75KW |
Installation Services
Professional installation is provided by AGMT company after shipment arrival. Factory must be equipped with all necessary requirements before scheduling installation with EAGLE company. Our engineers will perform complete final installation on-site.
During installation, we provide a comprehensive one-day training course covering operation and maintenance procedures. Training costs are $80/person/day plus local transportation, round-trip air tickets, and hotel accommodations. Day charges include travel days.
Premium Components
Our packing machines feature high-quality components from renowned brands including AirTAC pneumatic elements, Germain/Unipulse HMI touch screen panels, Schneider electrical components, and 3-4 Toledo load cells (200kg/pc, IP67 rating). Built for durability with an expected service life of 10 years.
Packaging and Shipping
Each machine undergoes thorough installation and testing before packaging. Complete units are securely packed in large wooden boxes within containers. Inner packaging includes stretch film protection, while outer packaging features export-grade wooden boxes with metal frames (non-fumigation wood) to prevent damage during transit.
Upon receipt, machines are ready for immediate operation—simply connect electrical wiring and air source. Shipping available from Shanghai, Ningbo, Nanchang, or other requested ports.
Frequently Asked Questions
What is the material of contact material parts?
The contact material parts are made of 304 stainless steel. The machine body can be constructed from either 304 stainless steel or carbon steel based on your requirements.
Can this machine handle different bag sizes?
Yes, the machine can be customized to accommodate various bag sizes according to your specific packaging requirements.
Can your machine meet our specific needs?
We customize every machine to match your exact requirements. Please provide your pack weight per pouch, packaging speed, bag dimensions, and samples of your products and packaging. We will then create a tailored proposal to ensure optimal performance for your application.
