4 / 6 Axes Safety Fence Kawasaki Robotic Arm Robots
Designed specifically for palletizing applications, the Palletizer Series features five unique robots with payload capacity from 80 kg to 500 kg to suit most needs. With industry leading work range and reliability, Kawasaki's high-speed palletizing robots help companies improve production line efficiency.
High-Speed Palletizing Robot Specifications
| Degrees of Freedom |
4 axis |
| Payload |
180 kg |
| Work Envelope & Maximum Speed |
| Axis |
Motion Range |
Maximum Speed |
| JT1 |
±160° |
140°/s ✽4 |
| JT2 |
+95° - -46° |
125°/s ✽4 |
| JT3 |
+15° - -110° |
130°/s ✽4 |
| JT4 |
±360° |
400°/s ✽4 |
| Working Area Width |
1,800 mm |
| Working Area Depth |
1,600 mm |
| Working Area Height |
2,200 mm |
| Moment of Inertia |
50 kg•m² ✽4 |
| Palletizing Capacity |
2,050 cycles/hour ✽4 |
| Positional Repeatability |
±0.5 |
| Mass |
1600 kg |
| Power Requirements |
12 KVA ✽3 |
✽2: Movement method (reciprocating by rising 400mm, horizontal movement 2,000mm, falling 400mm)
✽3: Depending on load and movement mode
✽4: If the load is less than or equal to 130kg
✽5: If the load is less than or equal to 250kg
Robot Features
- No wasted action with small installation space: RD80N has a turning radius of 397 mm, enabling it to cover a wide working area at high speed while occupying less space than a person. The MD500N features a unique new-type link mechanism for compact body without counter weight.
- Broad operating range and high payload capacity: The RD80N is the most compact model but possesses a wide range of movements, stacking up to 2062.3 mm height on 1100×1100 pallets.
- High-speed palletizing capacity: Kawasaki palletizing robots deliver the high-speed operation needed for distribution. RD80N performs 900 cycles/hour with 80kg loads, ZD130S performs 1500 cycles/hour with 130kg loads, and MD500N performs 600 cycles/hour with 500kg loads.
Installation Instructions
We provide user manuals and electrical drawings for self-installation. If needed, we can send engineers to your factory for installation and debugging services.
Package and Delivery

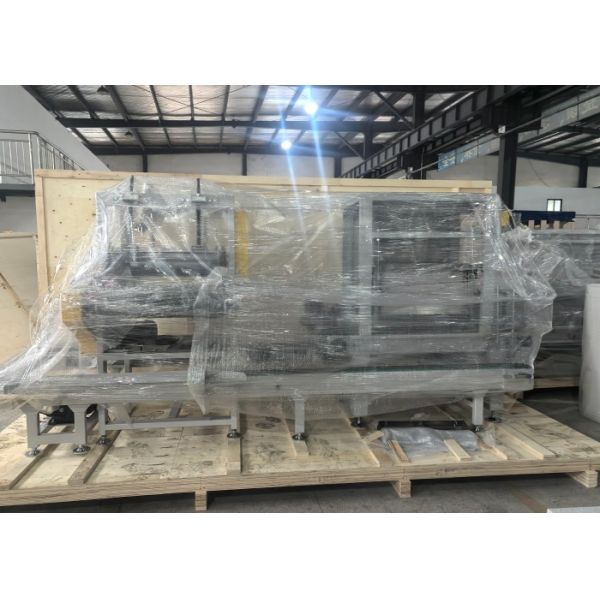

Machines are film-wrapped and packed in exported fumigation wooden boxes, then transported to your specified departure port (Shanghai, Ningbo, Qingdao, Suzhou, etc.).
Why Choose Us
- Complete programming support for Kawasaki systems including basement and grab hands
- On-site technician training for your operators until they are fully proficient
- Extensive experience with multiple robot brands (ABB, Kawasaki, Fanuc, Kuka) to select the most suitable and cost-effective model for your needs
Frequently Asked Questions
Do you offer installation and debugging?
Our engineers are available to service machinery overseas and help customers solve machine problems.
What's your policy for guarantee and broken parts?
We provide 12 months guarantee for all mechanical parts (excluding electrical/electronic parts and normal wear items). Guarantee starts from shipment date and covers replacement of faulty parts after construction fault verification.
How do we test your machinery?
We provide video verification after manufacturing completion, and you are welcome to visit our factory for testing and operational training.
